Keep the full-size character. Build the ride, handling and stopping power around how you drive. Shop the parts below or bring LTAC into the plan for your next upgrade.
This Garage covers 1977–1990 Caprice builds. Each part has its own year range and equipment requirements. Check the original spindle and rotor size, axle housing, suspension and wheel clearance before choosing an upgrade. Wagon, police-package and modified cars need particular attention to those details.
Shop each product for current pricing and availability. The parts featured here had MotorState warehouse stock when selected; inventory can change.
Brakes

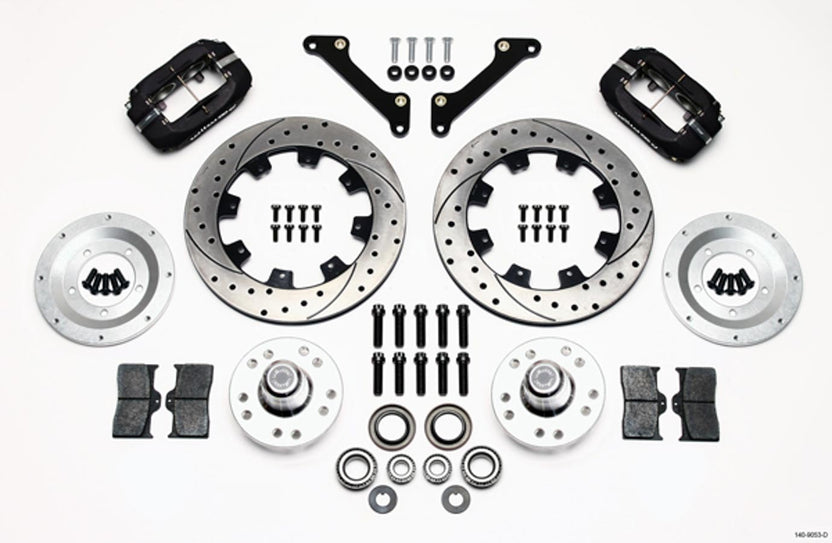

Four-piston black Dynalite calipers with 12.19-inch drilled and slotted rotors.
1979–1990 Caprice with OE 11-inch rotor spindles only. Original spindles require modification. Uses 5×4.50 / 5×4.75 bolt patterns and 1/2-20 studs; confirm your wheels. Some 15-inch wheels fit, but the clearance diagram must be checked. Hose kit below is required separately.
Shop the Wilwood front kit

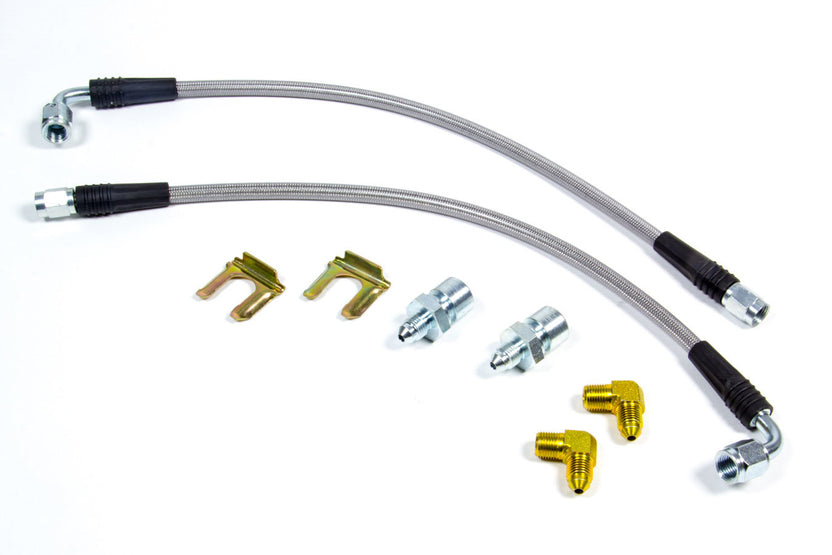

Braided stainless front brake hoses for the featured Wilwood conversion.
Required companion to the 140-9053-D application above. This is not a blanket replacement hose kit for every factory Caprice brake setup.
Shop the matching hosesSuspension

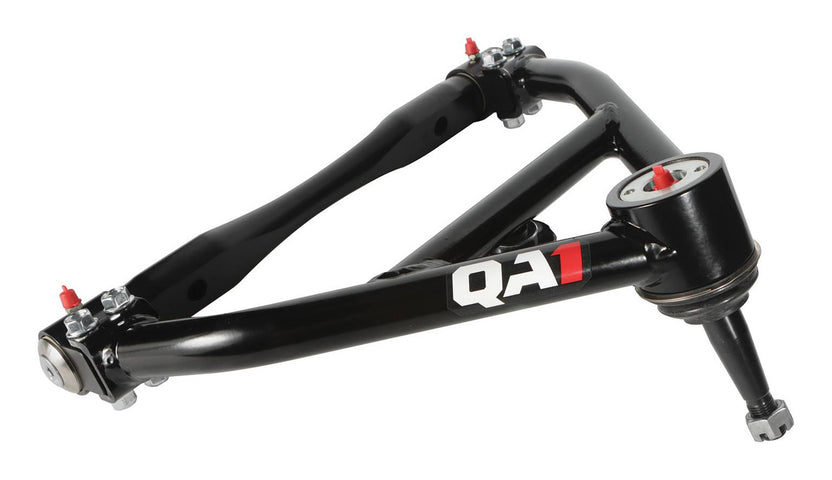

Street-performance upper control arm pair with polyurethane bushings.
Featured fitment: 1978–1990 Caprice. Match the complete front suspension and alignment requirements.
Shop front upper arms

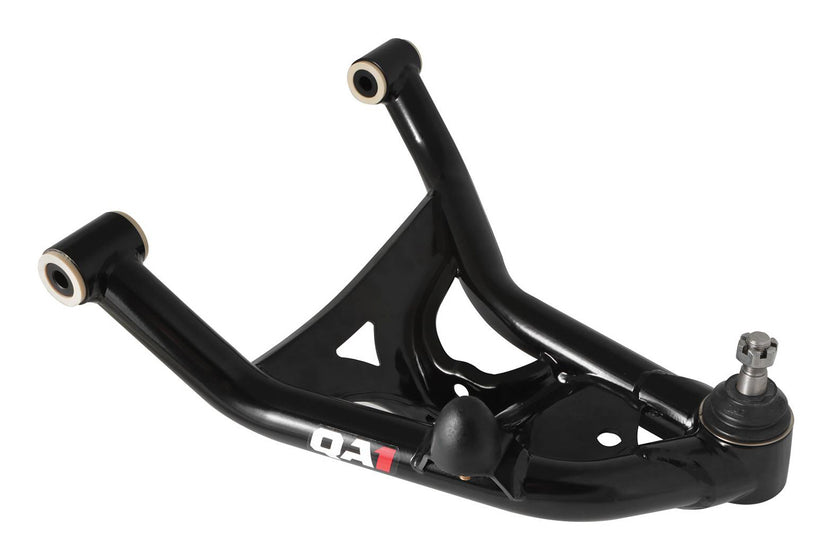

Street-performance lower arm pair for a planned front coilover upgrade.
1978–1990 Caprice. Requires compatible QA1 front coilovers, sold separately. These are not a standalone replacement for factory coil-spring lower arms.
Shop front lower arms

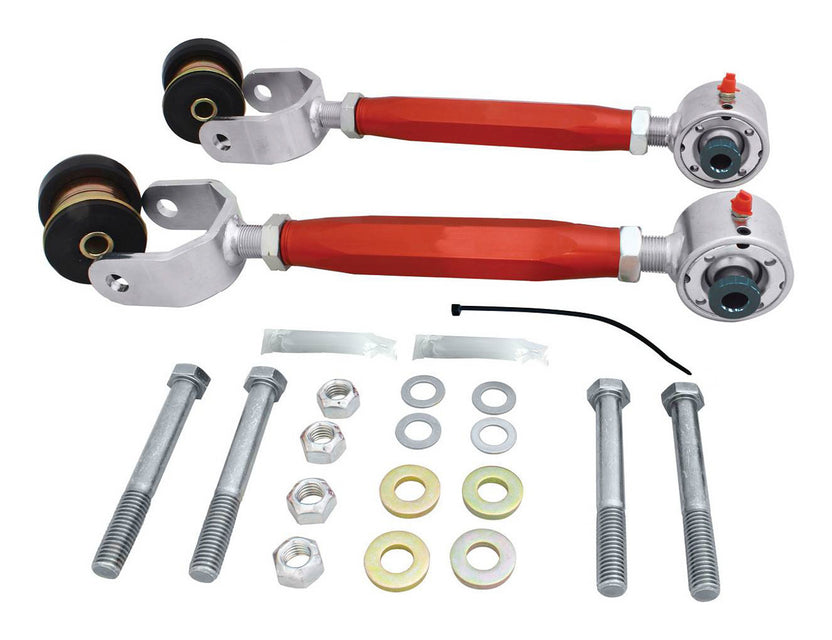

Adjustable upper trailing arm pair for rear suspension setup.
Featured fitment: 1978–1990 Caprice. Confirm axle mounting points on modified housings; check 1977 separately because supplier year ranges differ.
Shop rear upper arms

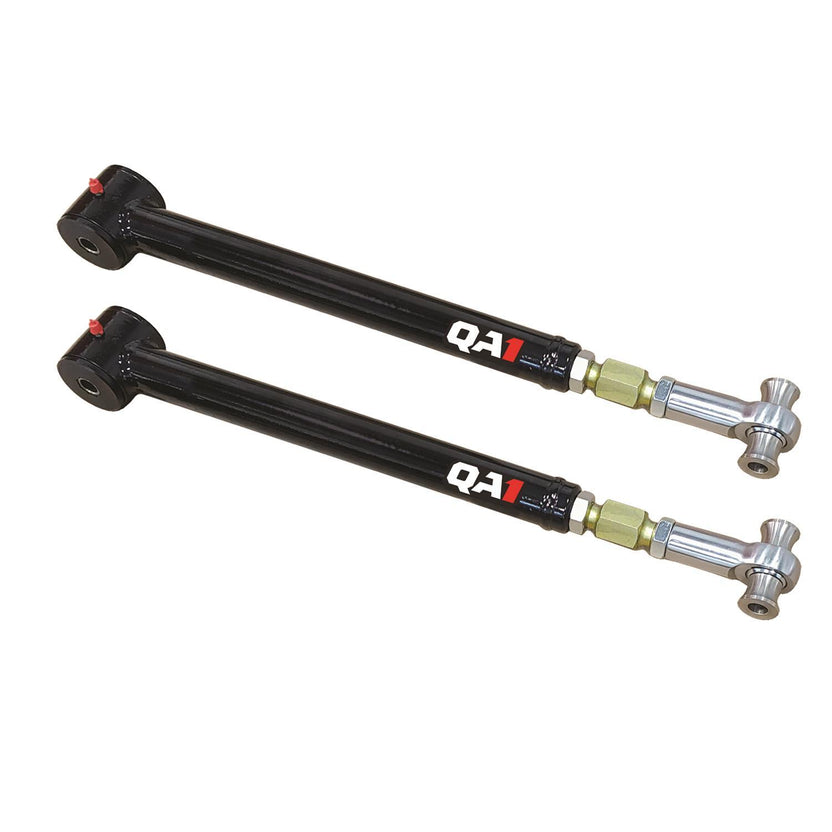

Adjustable rear lower trailing arm pair with greasable bushings.
Featured fitment: 1978–1990 Caprice. Does not accept the factory rear sway bar. Plan the compatible sway-bar arrangement before ordering; check 1977 separately.
Shop rear lower arms

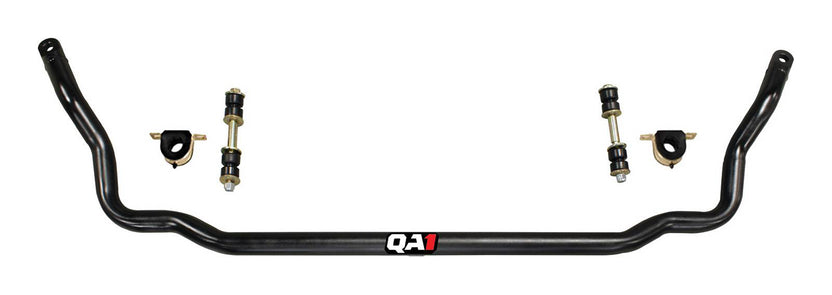

1-3/8-inch hollow chromoly bar with polyurethane bushings and mounting hardware.
Featured fitment: 1978–1990 Caprice. Check clearance with existing front suspension modifications.
Shop the front sway bar

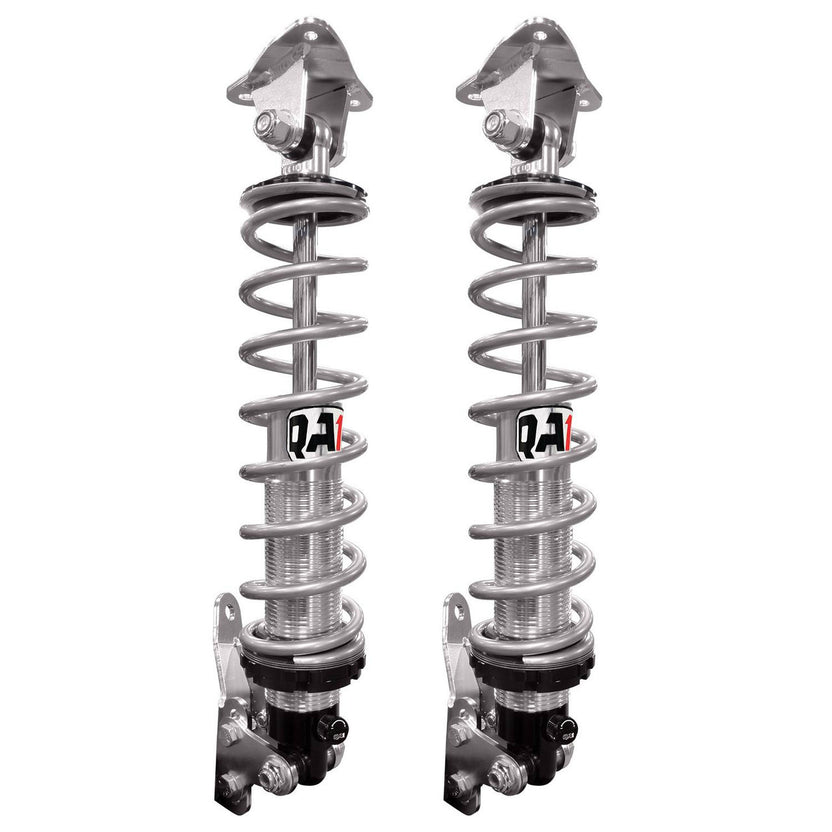

Single-adjustable rear shocks, 250 lb/in springs, brackets and hardware for a rear coilover conversion.
Featured fitment: 1978–1990 Caprice. Spring rate must suit vehicle weight and use. Drilling is required for mounting brackets; wagons also require rear-crossmember clearancing. Lower brackets may not fit aftermarket axle housings. Requires T114W or T115W spanner wrench, sold separately. Confirm 1977 separately.
Shop rear coiloversCoilover installation & adjustment
These accessories support the QA1 RCK52384 rear coilover system featured above. They are sold separately from the suspension kit.

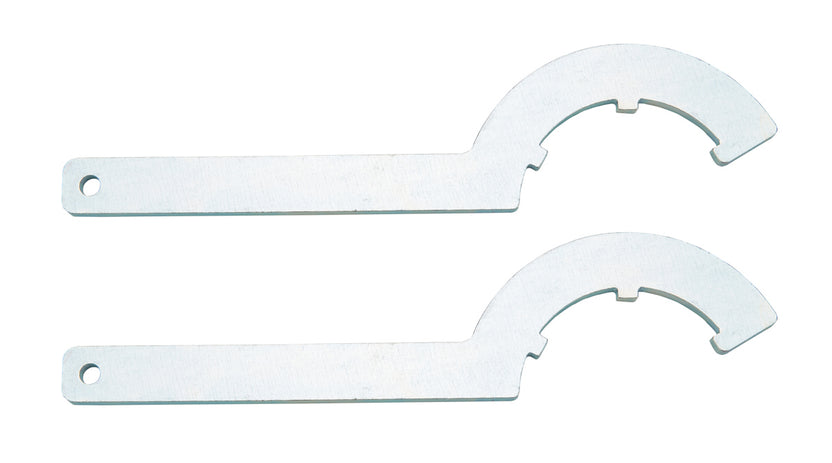

Required adjustment tool. Fits the QA1 coilover spring-seat adjuster and jam nut. Use it to set ride height following QA1’s instructions, with the suspension unloaded.
Shop the spanner wrench

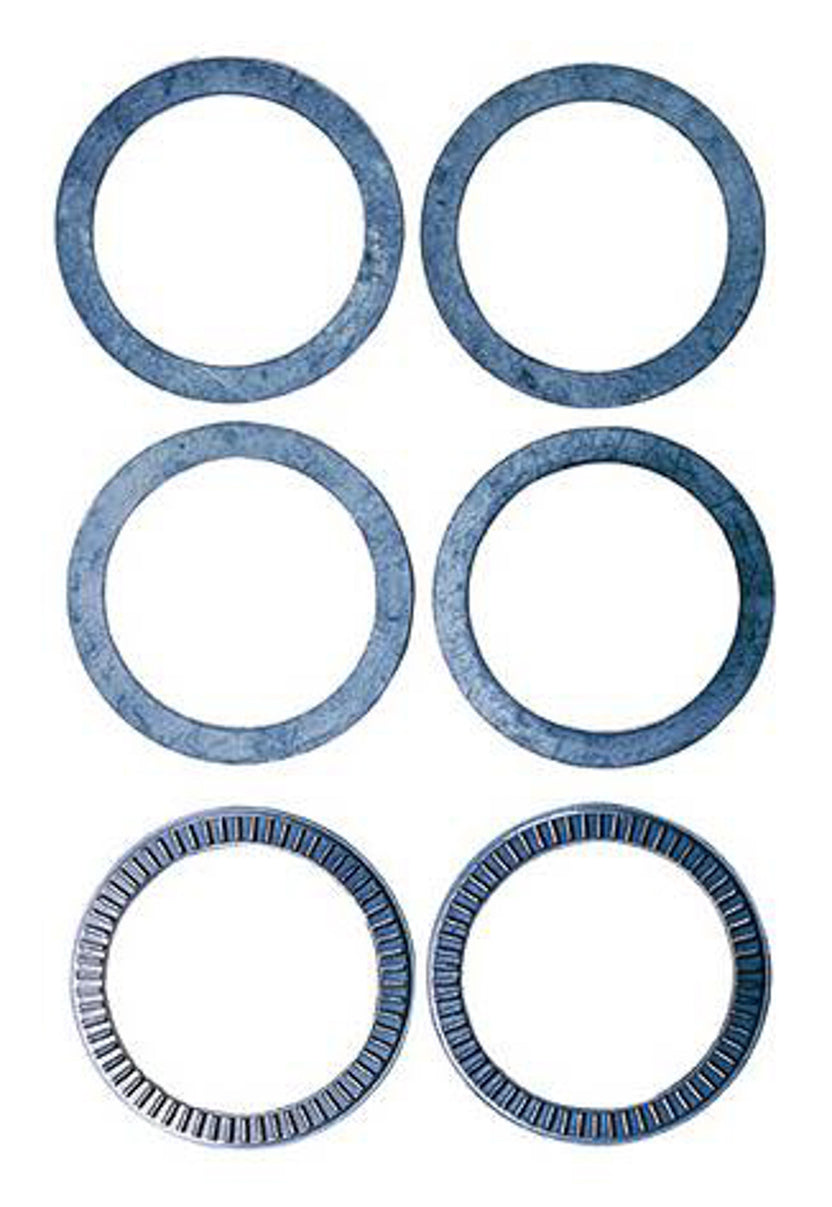

Optional adjustment aid. Bearings and washers help the spring seat turn more easily when setting ride height. QA1 recommends this kit for the featured rear coilovers. Follow the specified anti-seize and installation instructions.
Shop the bearing kitSteering

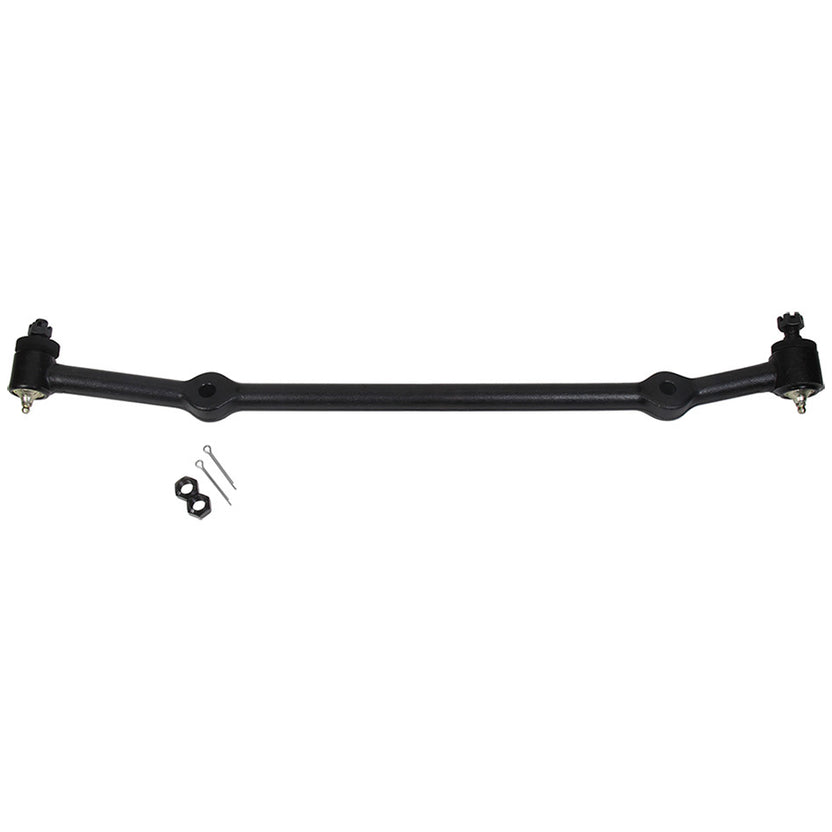

Replacement centerlink for the original-style steering linkage.
1977–1990 Caprice within the cataloged 1977–1996 B-body application. Match the DS899 configuration to your existing linkage; not for a rack-and-pinion conversion.
Shop the centerlinkFinishing details

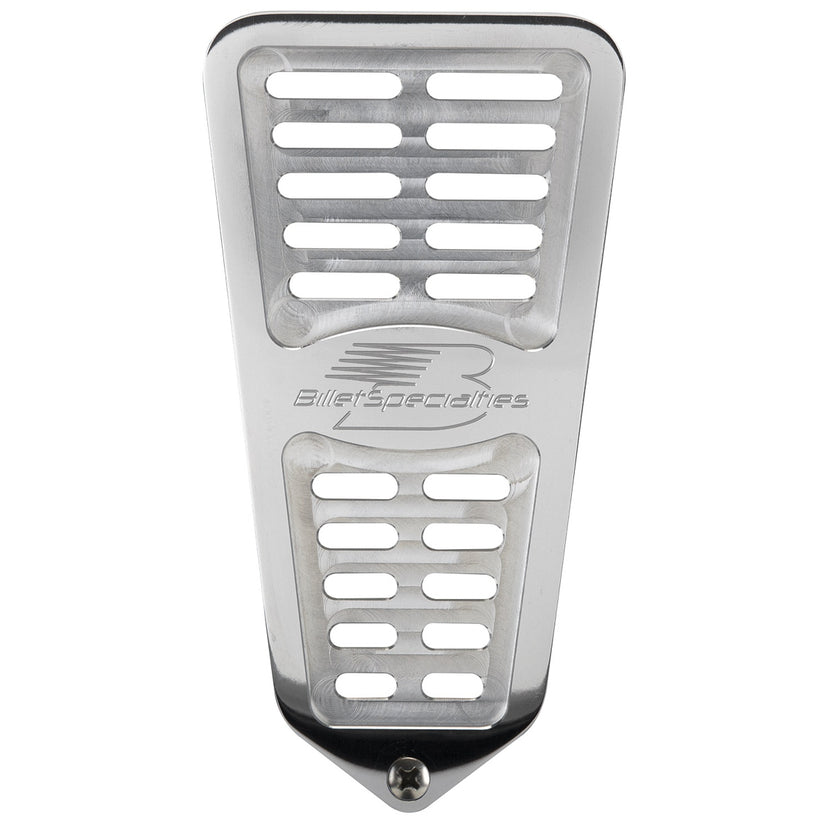

A pair of polished aluminum vents for a clean finishing touch.
Cataloged for 1977–1990 GM B-body. Compare the original door-jamb vent opening and mounting arrangement before ordering.
Shop door-jamb ventsFrom a comfortable cruiser to a more focused street build, LTAC can help match the next parts to the car and the goal. Tell us your year, engine, wheels, axle and current suspension when you want help planning. We’ll check fitment and MotorState warehouse availability before recommending additional parts.
Plan your Caprice build with LTAC
