Wilwood 140-10015-D Dynapro Front Drag Brake Kit – 1994–2004 Mustang, 11.75-Inch Drilled Rotors
Wilwood 140-10015-D Dynapro Front Drag Brake Kit – 1994–2004 Mustang, 11.75-Inch Drilled Rotors

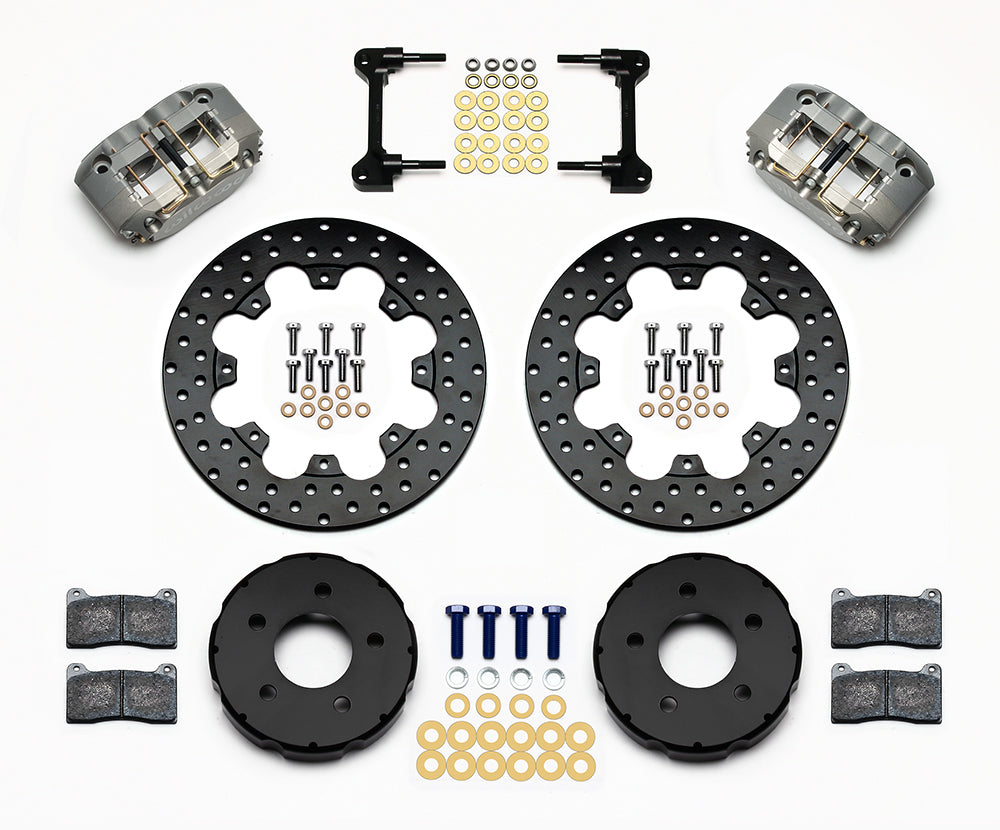

Wilwood 140-10015-D Dynapro Radial front drag brake kit for 1994–2004 Mustang spindle and hub assemblies. Features four-piston Type III anodized aluminum calipers, 11.75 x 0.35-inch drilled solid steel rotors and 5 x 4.50-inch aluminum rotor hats.
Intended use
Lightweight drag-racing application. Wilwood recommends this thin steel-rotor configuration for four-wheel-disc cars up to 2,800 pounds. For heavier cars, or lighter cars running extreme speeds, Wilwood recommends its 0.81-inch vented-rotor configuration. Do not select this kit as a general street-brake upgrade.
Fitment and required parts
- Brackets attach to factory caliper mounting points on the specified later Mustang spindles.
- Uses existing hubs; hubs and spindles are not included. Not a direct fit on original 1979–1993 Mustang spindles.
- May fit 15-inch wheels; verify the actual wheel with Wilwood’s clearance diagram.
- Includes front calipers, rotors, hats, pads, brackets and kit hardware. Flex hoses are separate; recommended kit 220-6458 requires connection and routing checks on converted vehicles.
Front brakes only; rear brakes and installation are separate.
Wilwood installation instructions and wheel-clearance diagram (DS-575)
