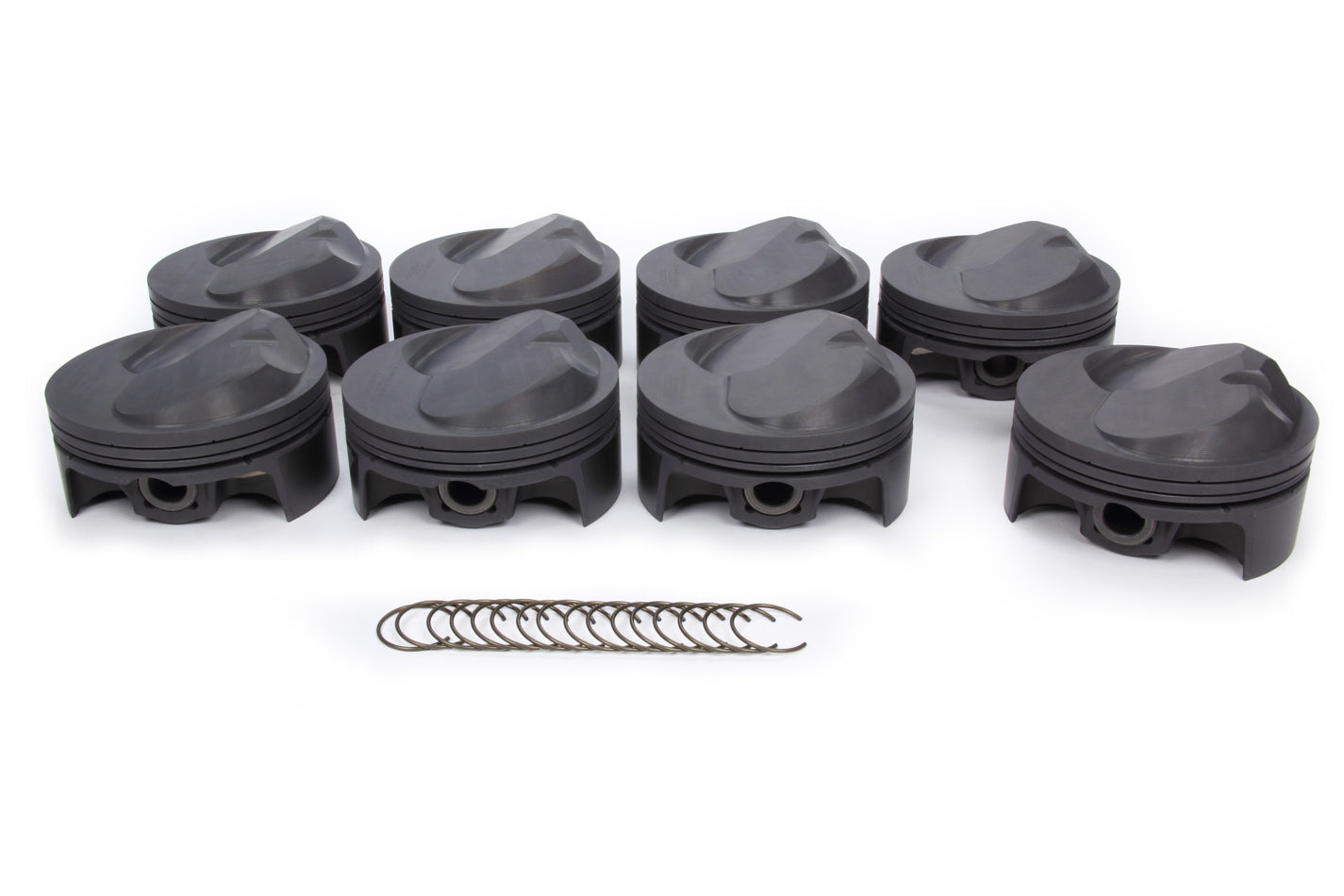

MAHLE Pistons BBC Elite Sportsman Piston Set 4.610 Inch Bore Forged Dome

The MAHLE Pistons BBC Elite Sportsman Piston Set is engineered for high-performance big block Chevy engines. Each piston features a forged construction with a dome design, providing strength and durability for demanding applications. The pistons are designed with a 4.610-inch bore and a compression height of 1.270 inches, optimized for performance and reliability. Ring grooves measure 0.043 inches x 0.043 inches, accommodating standard piston rings for sealing and longevity. Each piston displaces approximately 47.10 cc, making this set suitable for builds targeting increased compression ratios and power output.

These pistons are part of MAHLE’s Elite Sportsman series, crafted from high-quality materials to withstand extreme engine conditions. The set includes eight pistons, ideal for completing a full engine rebuild or performance upgrade. Their forged construction ensures enhanced strength, heat resistance, and longevity under high-stress environments. Designed for Big Block Chevy engines, these pistons are compatible with a wide range of performance builds, from street to racing applications.

Installation requires careful attention to piston orientation and ring fitting. The design ensures proper clearance and compatibility with standard components, making them suitable for professional and DIY enthusiasts seeking reliable high-performance pistons. Trust MAHLE’s reputation for quality and precision engineering to deliver consistent engine performance and durability in your next project.

Features:

• Forged construction for strength and durability

• Dome design for performance and compression

• 4.610-inch bore size suitable for high-performance engines

• Compression height of 1.270 inches for optimized chamber clearance

• Ring grooves measuring 0.043 inches x 0.043 inches for standard piston rings

• Displacement of approximately 47.10 cc for increased compression ratios

• Set includes eight pistons compatible with Big Block Chevy engines

• High-quality materials designed for demanding engine conditions
